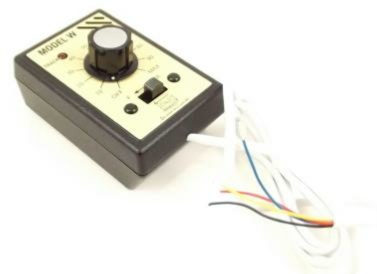

Gaugemaster Model W

Single Track Walkabout Controller for 'N', 'OO' and most small Gauges.

Input: 1 x 16v A.C. at 1.25 amps (Gaugemaster T1, M1 or 100M recommended, requires a GM75 6 Pin DIN Plug to connect to 100M, sold seperately).

Output: 1 x 12v D.C. at 1 amp controlled.

Fitted with 1.5 metres of 4 core cable

Measurements: 90mm x 59mm x 35mm deep

£50

Gaugemaster Combi

Single Track Transformer and Controller for ‘N’, ‘OO’ and most small Gauges. An uncomplicated controller which comes complete with a separate, dedicated transformer plugging directly into a wall socket with a 1.8m lead to plug into the controller.

Transformer:

Input: Mains (240v A.C.)

Output: 1 x 18v A.C. at 1.1 amp

Measurements: 65mm x 80mm x 83mm

Controller:

Input: 1 x 18v A.C. at 1.1 amp

Output: 1 x 12v D.C. at 1 amp controlled

Accessories: 1 x 18v A.C. at 1 amp uncontrolled

Measurements: 64mm x 46mm x 84mm

£55

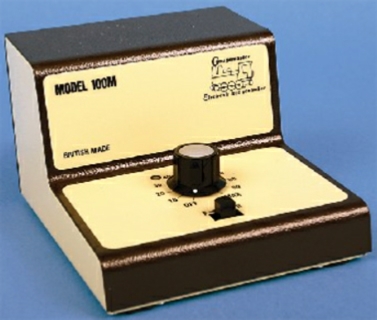

Gaugemaster 100M

Single Track Transformer Controller for ‘N’, ‘OO’ and most small Gauges, with two accessory outputs.

Input: Mains (240 volts A.C. 3 amp fused)

Output: 1 x 12v D.C. controlled at 1 amp

Accessories: 1 x 12v D.C. at 1 amp uncontrolled

1 x 16v A.C. at 1 amp

1 x 16v A.C. DIN Socket for Gaugemaster handheld units (HH, W and WS)

Measurements: 148mm x 90mm x 125mm deep

£140

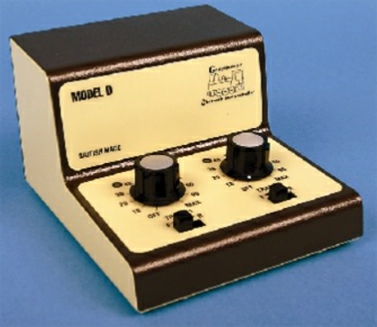

Gaugemaster Model D

Twin Track Transformer Controller for ‘N’, ‘OO’ and most small Gauges, with two accessory outputs, this is the most popular unit in the Gaugemaster range.

Input: Mains (240 volts A.C. 3 amp fused)

Output: 2 x 12v D.C. at 1 amp each controlled

Accessories: 1 x 16v A.C. at 1 amp uncontrolled

1 x 12v D.C. at 1 amp uncontrolled

Measurements: 148mm x 90mm x 125mm deep

£155

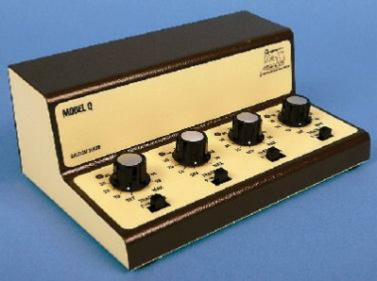

Gaugemaster Model Q

Four Track Transformer Controller for ‘N’, ‘OO’ and most small Gauges.

Input:  Mains (240v A.C.) use 3amp fuse

Output:  4 x 12v D.C. at 1 amp each controlled

Accessories:  2 x 16v A.C. at 1 amp

2 x 12v D.C. at 1 amp uncontrolled

Measurements:  208mm x 90mm x 147mm deep

£275

Gaugemaster GMC-SS1

Electronic control module which allows your locomotive (or complete train) to shuttle backwards and forwards on a specific section of your layout.

The unit is wired between your controller and the track (DC Only) and with the use of Diodes (Included) you can watch as your locomotive moves from one end of the layout to the other and back again automatically.

£45
